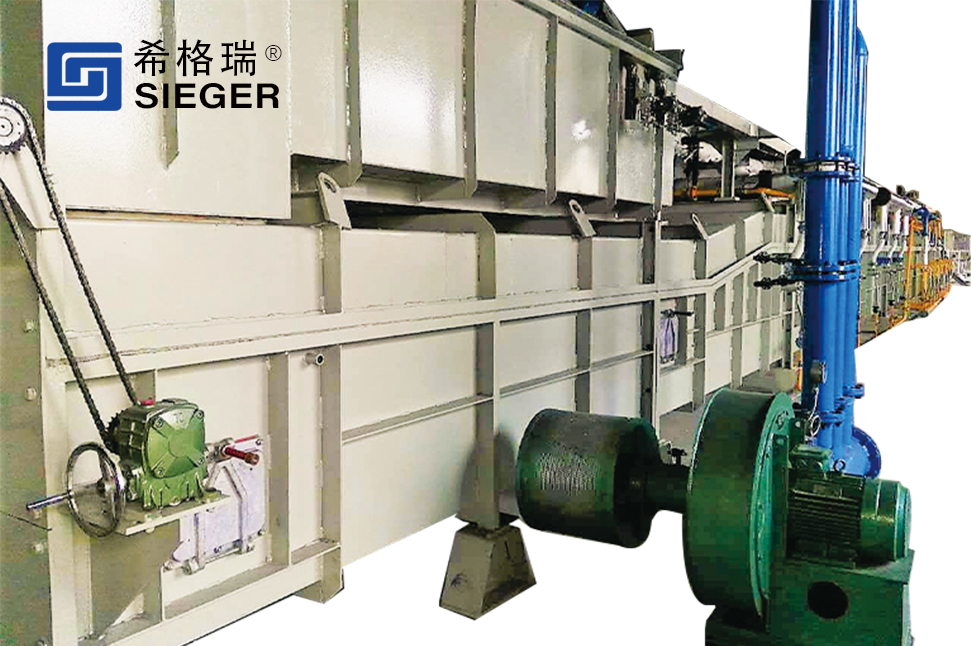

Product center | Iron Wire Annealing Furnace
Introduction
Natural gas or liquefied gas heating, with heat exchange function, high
heating efficiency, energy saving,environmental emissions, per ton of
product gas consumption as low as 22Nm3. Widely used for all kinds of wire
online annealing treatment. DV value up to 150, heat treated diameter
0.6mm to 13mm, up to 60 wires.
Main Technical Parameters
|
ltem |
Steel Wire Diameter(mm) |
DV(mm*m/min |
Wire Number |
Fuel |
Furnace Temperature |
|
Parameters Scope |
Φ0.6~Φ13.0 |
Max:150 |
6-60 |
NG/LPG |
Max:900℃ |
